IB4-03S Standard Incubator (25L, 120V, 60Hz)

Availability:

Only 1 left in stock

Uniform temperature distribution through airflow
optimized for uniform heat transfer (within ±0.41 ℃ at 37℃)

$2,156.00

Only 1 left in stock

Intuitive Touch Controller

  • Intuitive interface with 3.5-inch display.
  • ‘Wait on / Wait off’ timer function.

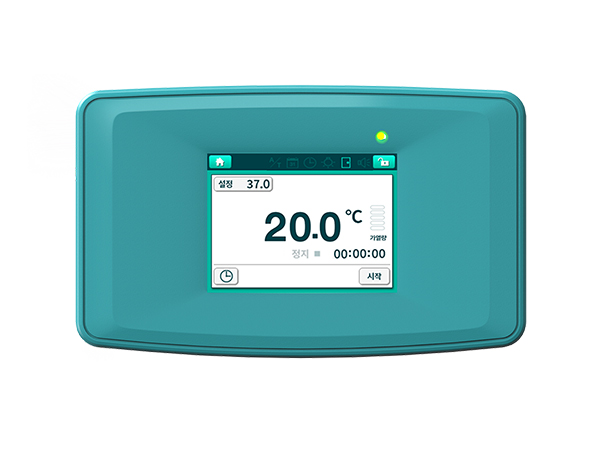

3.5-inch touch display

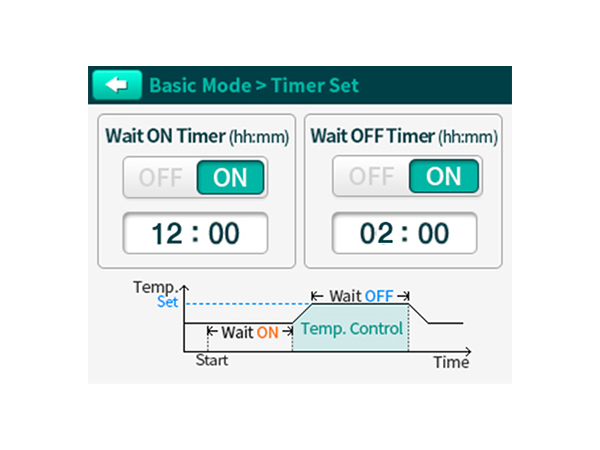

Wait on & Wait off timer



Reliable Temperature Control Performance

  • Temperature accuracy for wide range by 3-point calibration
  • The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
  • Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±0.41 ℃ at 37℃)

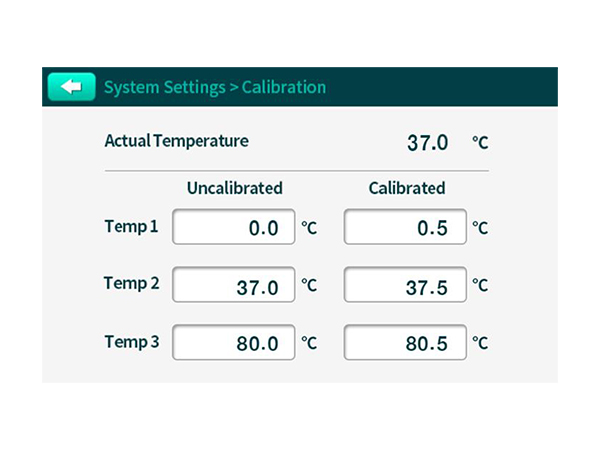

Accurate temperature control with 3-point calibration

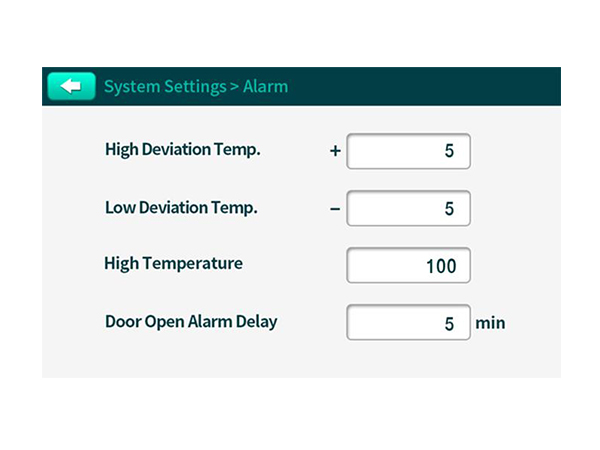

Settings for temperature deviation<



Convenient Experiment and Data Checking

  • Support RS-232/USB port and software making easy operation and data management from PC. (option).
  • Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
  • Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
  • Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)

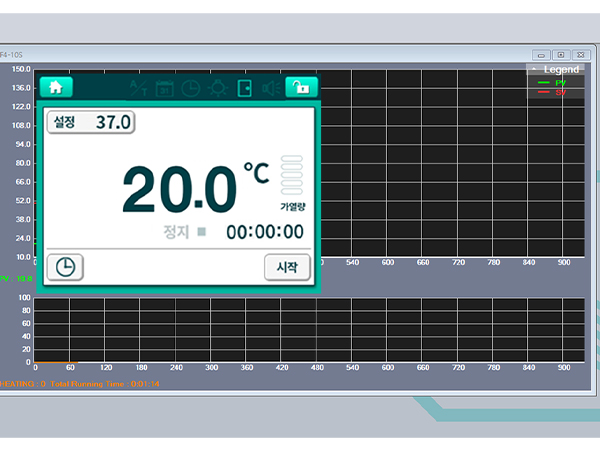

Manipulation via PC. (option)

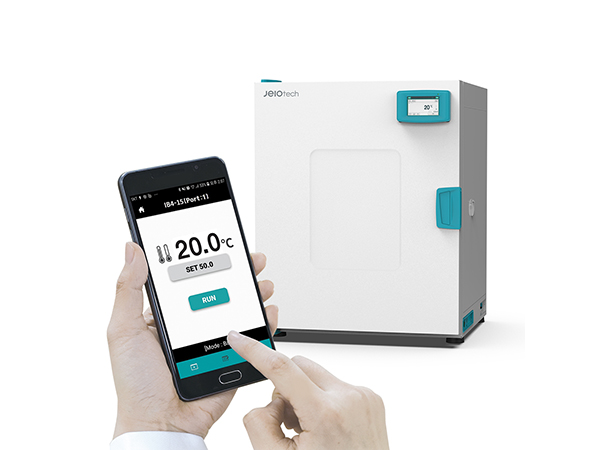

Real-time monitoring via mobile devices. (LC GreenBox: option)



Enhanced Safety and Convenience

  • Implemented with the highest-level overheating prevention system. (Patent 10-0397583)
  • Over Temperature Limiter.
  • Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1
  • Logs the last 12 events, including run times, stops, and errors.
  • Double stackable with stacking set (option) maximizes space utilization.

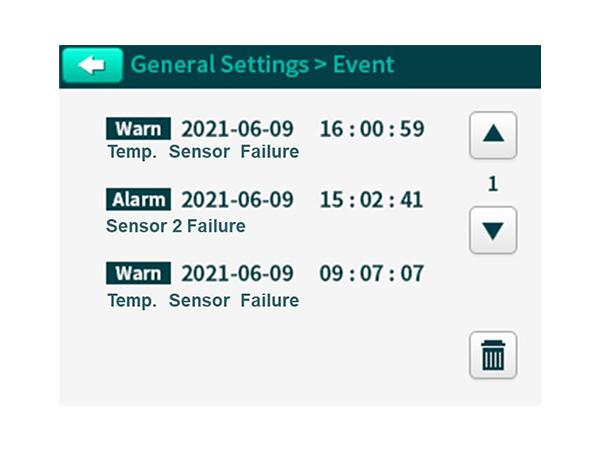

Logs the recent 12 events

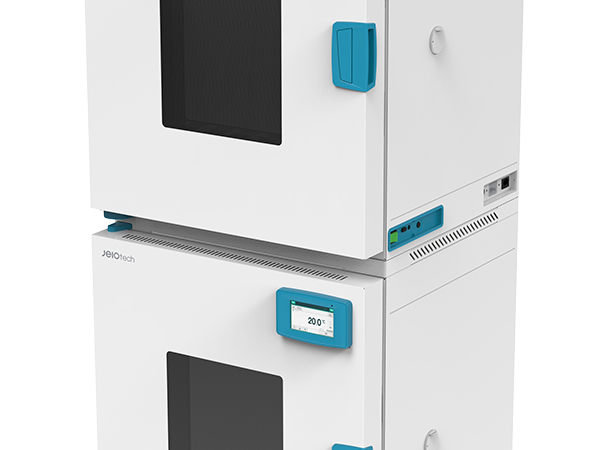

Increased space utilization by double stacking (stacking set : option)
* Double stacking example: (top) forced convection oven / (bottom) forced convection incubator



Multiple Features to Minimize Incubation Failure

  • Using Water tray delays media drying, making incubation time longer. (option)
  • Alarm is activated when door remains open longer than the set time to maintain internal temperature.
  • Automatically resume the control of previous operations when restored within 30 seconds from blackouts.
  • Controller can be locked with the button on the top, preventing any actions from unintended pressing.

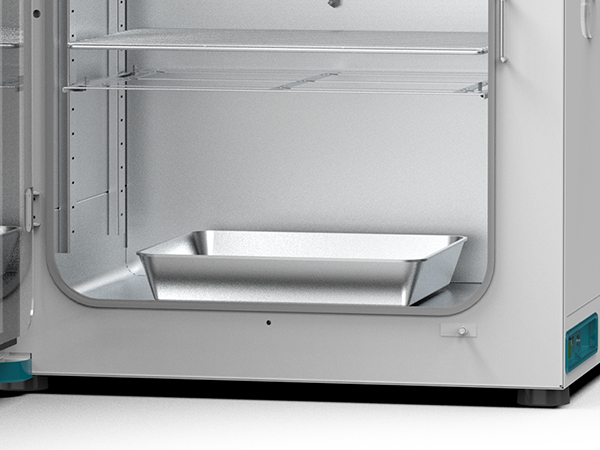

Water tray that minimizes media drying (option)

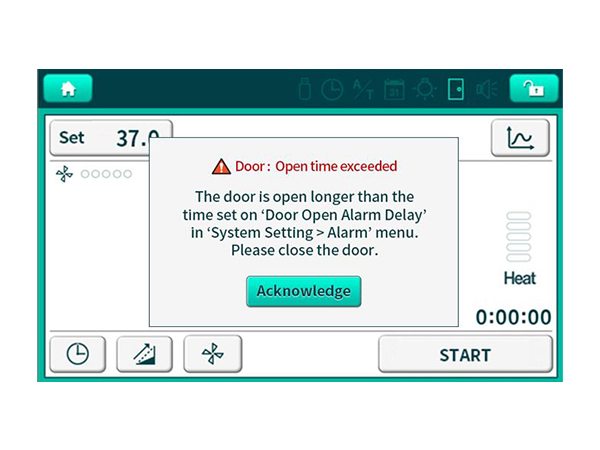

Audiovisual alerts to notify abnormalities
SKU: AAH21453U Category:
Model IB4-03S
Chamber volume (L / cu ft) 25 / 0.88
Temperature Range (℃ / ℉) Amb. +51) to 80
/ Amb. +9 to 176
Fluctuation at 37℃ (±℃ / ℉) 0.10 / 0.18
Variation at 37℃ (±℃ / ℉) 0.23 / 0.41
Heating time to 37℃ (min.) 1) 5
Recovery time at 37℃ (min.) 5
Control panel 3.5 inch TFT Color LCD
Communication interface USB-B, RS-232 (option)
Function Recently event record 12 ea
Dimension
(W×D×H)		 Interior (W x D x H, mm / inch) 300 x 210 x 400
/11.81 x 8.27 x 15.75
Exterior (W x D x H, mm / inch) 478 x 527 x 604
/ 18.8 x 20.75 x 23.78
Net weight (Kg / lbs) 32 / 70.55
Shelves Quantity of shelves (standard/max.) 2 / 4
Max. Load per shelf (Kg / lbs) 20 / 44.09
Electrical requirements (120V, 60Hz, A) 5.8
Cat. No.
 AAH21453U

1) Able to control down to amb +5℃(amb +9℉) when the water tray is filled with water. (Water tray: option)

※ Technical data according to DIN 12880
