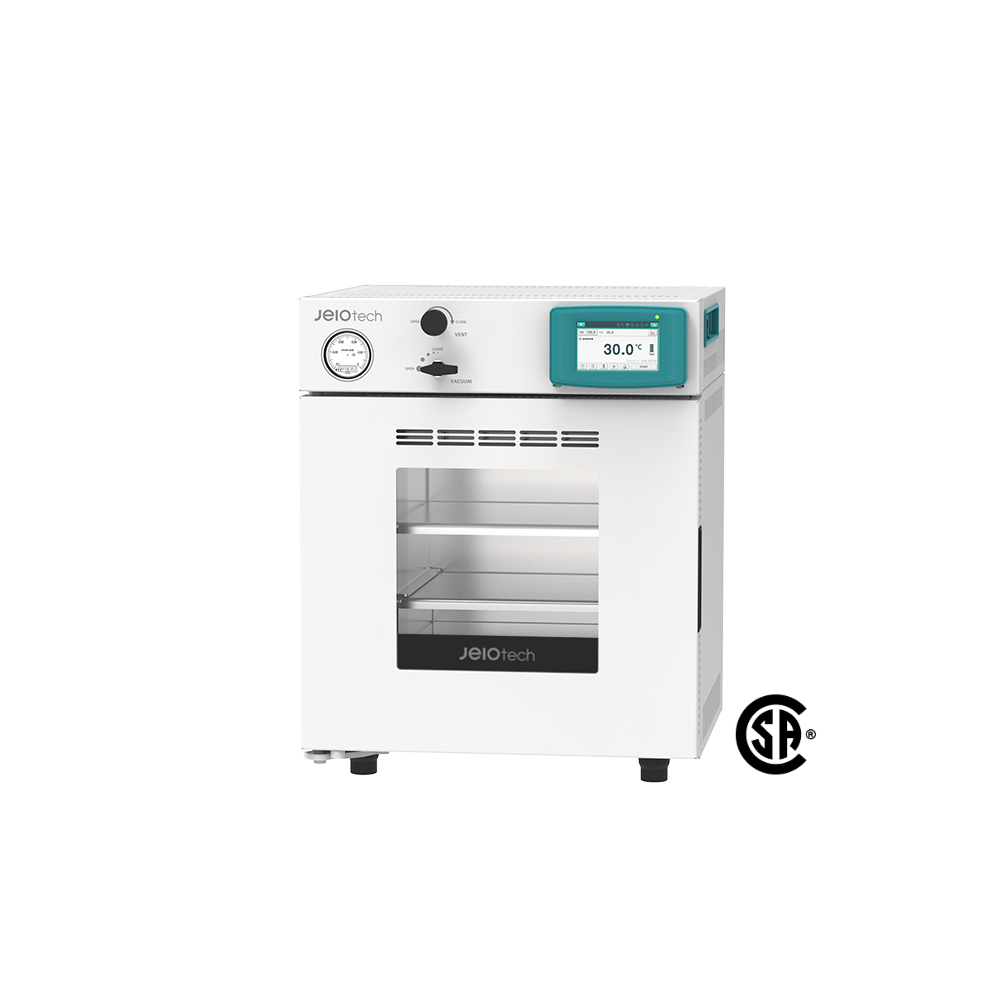

OV4-30 Vacuum Oven, 28L

Availability:

Out of stock


New vacuum oven with improved usability and reliability

  • 120VAC, 60Hz

$5,092.52

Out of stock

Structural Functional Features

  • Wide temperature range that can be controlled up to 250°C.
  • Improved temperature distribution. (±1.5°C at 100°C)
  • 3-point temperature calibration, high temperature accuracy over a wide temperature range.
  • Inner stainless steel and aluminum shelves provide excellent corrosion resistance and clean maintenance.
  • Protects equipment from overcurrent and over temperature through safety circuits.
  • Vacuum line and release line are separated and convenient to use.
  • The display is mounted at the top, minimizing floor sizerequirement.

Use Convenience Features

  • When a vacuum is formed and maintained, the toughened glass is attached to the gasket, so it is kept confined for long-time repeated use.
  • Save and use 3 frequently used temperatures.
  • PC connection using RS-232 port and USB port.
  • Excellent visibility and viewing angle due to application of 5-inch large LCD.
  • Wait On/Off timer. (up to 999 hours 59 minutes)
  • Toughened glass viewing window for easy internal viewing.
  • Microprocessor PID method for precise temperature control.
  • Automatic restart as it was operated after power recovery.
  • Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
  • Microprocessor PID method for precise temperature control.

Outstanding Safety

  • Door structure including buffer system allows for internal pressure release through upper and lower ventilation holes when stable vacuum is formed/maintained and when there is an internal explosion.
  • Polycarbonate safety cover provided in case of toughened glass breakage.
  • 12 events is recorded in case of door open, error, and etc.
  • Top-rated overheating protection system. (registration 10 – 0397583)
  • Over temperature limit function.
  • Safe product surface, even when operated at upper temperature.
  • Malfunction prevented by controller lock function.
  • Alarm if set temperature deviation outside of acceptable range.

Vacuum Oven Use Configuration

  • It is recommended to use the cold trap bath on the vacuum line to protect the weak vacuum pump against water/solvent or to supply dry air to the sample.
SKU: AAH13316U Category:
Weight 177 lbs
Dimensions 24 × 24 × 32 in
Chamber volume (L / cu ft) 28 / 1
Vacuum gauge range, analog (Mpa) 0 to 0.1
Temperature
Range (℃ / ℉) Amb. +15 to 250 / Amb. +27 to 482
Fluctuation at 100℃ (±℃ / ℉) 0.1 / 0.18
Variation at 100℃ (±℃ / ℉) 1.5 / 2.7
Heating time to 100℃ (min.) 60
Dimension (W×D×H)
Interior (mm / inch) 302 × 305 × 302 / 11.9 × 12 × 11.9
Exterior (mm / inch) 537 x 522 x 655 / 21.1 x 20.6 x 25.8
Net weight (Kg / lbs) 69 / 152.1
Shelves
Quantity of shelves (standard/max.) 2 / 2
Max. Load per shelf (Kg / lbs) 20 / 44.1
Electrical requirements (120V, 60Hz, A) 10.2
Cat. No. AAH13316U

※ The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.

※ Technical data (according to DIN 12880, after 2013)
